Product image / diagram
Sher CFX SS 2g 20AX 2Way Toggle SS
£143.34
Description
Sheer CFX Satin Steel 2 gang 20AX 2 Way Toggle Satin Steel
Delivery and returns information coming soon.
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section_Name | Sheer CFX |
| Page_Sort_Order | 017-016-002 |
| InsertType | 2 gang 20AX 2 Way FL Toggle |
| Insert_Finish | Satin Steel |
| Uf_ItmLabelTechInsert | T22-FLDLY |
| Uf_HAM_Plate_Range | Sheer CFX |
| Uf_HAMPlate_Generic_Size | Single |
| Range_Name | Sheer CFX - Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006. |
| Patents_And_Trade_Marks | CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755 |
| Item_Long_Description | Sheer CFX Satin Steel 2 gang 20AX 2 Way Toggle Satin Steel |
| PlateFinish | Sheer CFX Satin Steel |
| EAN_13_Barcode | 5017504036263 |
| Dimensions_Nominal | Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket |
| Switched_Poles | Single |
| Current_Rating | 20AX |
| Max_Load | 20 Amp inductive |
| Mains_Frequency | 50/60Hz |
| Contact_Gap_Minimum | 3mm |
| Terminal_Capacity_1 | 6x1mm² |
| Terminal_Capacity_2 | 5x1.5mm² |
| Terminal_Capacity_3 | 3x2.5mm² |
| Terminal_Capacity_4 | 2x4mm² |
| Terminal_Capacity_5 | 1x6mm² |
| Earth_Terminal_Capacity_1 | 6x1mm² |
| Earth_Terminal_Capacity_2 | 5x1.5mm² |
| Earth_Terminal_Capacity_3 | 3x2.5mm² |
| Earth_Terminal_Capacity_4 | 2x4mm² Multi-strand |
| Earth_Terminal_Capacity_5 | 1x6mm² |
| Product_Class1 | Face plate must be earthed |
| Ambient_Operating_Temperature | -5° to +40°C |
| Recommended_Location | Internal Use Only |
| Maximum_Installation_Altitude | 2000m |
| Standard_Approval | BS EN 60669-1 |
| Commodity_Code | 85365080 |

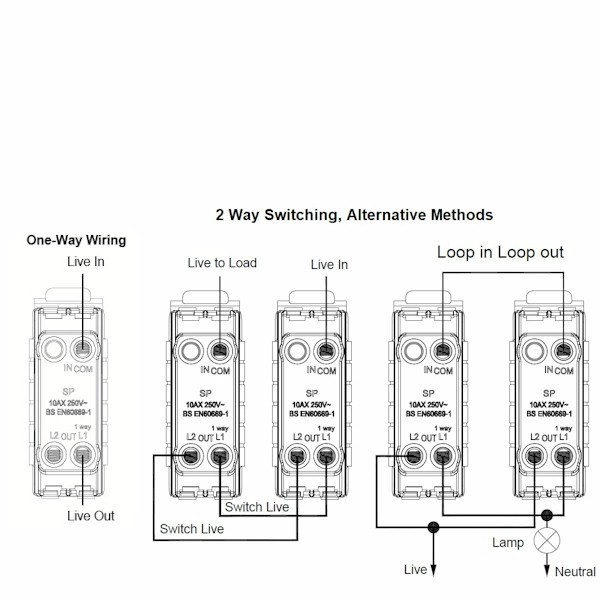

| Wiring_Image | WD2Wv2.jpg |
| Item_Image | 84CT22.jpg |
| Dimension_Image | TD-8CT22.jpg |
| Luckins_TSI | 387375966 |
| Tech_Sheet_Page_Footer | 84CT22 - Sheer CFX Satin Steel 2 gang 20AX 2 Way Toggle Satin Steel |
| product_code | S SH-C SS |
| family_code | S SHR CFX |
| last_inv | 28/05/2025 |
| unit_weight | 211.00000 |
| weight_units | GR |
| Uf_ItmLabelCE | CEPCC.jpg |
| Uf_LuckinsEDP | 4533140527 |
| Uf_HAMInnerBoxQty | 5 |
| Uf_OuterBoxQty | 50 |
| Picture_Exists | Yes |
| Uf_ITMTechDataType | Plate |
| Uf_IncludeinPriceList | Yes |
| FamilySortOrder | 17 |
| HAM_SortOrder | 16 |
| InsertSortOrder | 002 |
| Generic_Size | Single |
| Box_Fixing_Hole_Centres | 60.3mm |
| Grid_Fixing_Hole_Centres | CFX Clips |
| Uf_HAMPlateFinish | Satin Steel |
| WEB_InsertType | 2 Way |
| WEB_NumberofGangs | 2 |
| MainInsertColour | Satin Steel |
| LastUpdated | 03/04/2026 |
| Module_Size | Height = 53mm Width = Depth = 23mm |
| Module_Size_Height | 53mm |
| Module_Size_Depth | 23mm |
| Fixing_Hole_Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum_Wall_Box_Depth | 35mm |
| Plate_Finish | Satin Steel |
| Subheader2 | Sheer CFX Toggles |
| QR_Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Weight | 211 GR |
| Voltage | 220/250V AC |
| ip_rating | IP2XD |
| Description | Sher CFX SS 2g 20AX 2Way Toggle SS |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 1.5mm plate + 3.0mm gasket |
| Price | 143.34 |
| Part Code | 84CT22 |
