Product image / diagram
Hart CFX SS DP SS2+USB+USB C SS/BL
£150.36
Description
Hartland CFX Satin Steel Effect 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2x2.4A Satin Steel/Black
Delivery and returns information coming soon.
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section_Name | Hartland CFX |
| Page_Sort_Order | 012-023-002 |
| InsertType | 2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total) |
| Insert_Finish | Satin Steel/Black |
| Uf_ItmLabelTechInsert | SS2USBC |
| Uf_HAM_Plate_Range | Hartland CFX |
| Uf_HAMPlate_Generic_Size | Double |
| Range_Name | Hartland CFX |
| Patents_And_Trade_Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item_Long_Description | Hartland CFX Satin Steel Effect 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2x2.4A Satin Steel/Black |
| PlateFinish | Hartland CFX Satin Steel Effect |
| EAN_13_Barcode | 5051164000134 |
| Dimensions_Nominal | Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm |
| Commodity_Code | 85366990 |
| Dimension_Image | TD-7CSS2USBC.jpg |
| Luckins_TSI | 407290468 |
| Tech_Sheet_Page_Footer | 74CSS2USBCSS-B - Hartland CFX Satin Steel Effect 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2x2.4A Satin Steel/Black |
| product_code | S HT-C SS |
| family_code | S HART CFX |
| last_inv | 18/02/26 |
| unit_weight | 300.00000 |
| weight_units | GR |
| Uf_LuckinsEDP | 4533396708 |
| Uf_HAMInnerBoxQty | 5 |
| Uf_OuterBoxQty | 20 |
| Picture_Exists | Yes |
| Uf_ITMTechDataType | Plate |
| Uf_IncludeinPriceList | Yes |
| FamilySortOrder | 012 |
| HAM_SortOrder | 023 |
| InsertSortOrder | 002 |
| Generic_Size | Double |
| Box_Fixing_Hole_Centres | 120.6mm |
| Grid_Fixing_Hole_Centres | CFX Clips |
| Uf_HAMPlateFinish | Satin Steel Effect |
| WEB_InsertType | Double Pole |
| WEB_NumberofGangs | 2 |
| MainInsertColour | Satin Steel |
| TrimColour | Black |
| LastUpdated | 18/02/26 |
| Switched_Poles | Double |
| Current_Rating | 13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C |
| Max_Load | 13 Amp, USB TYPE A & C = 2.4A |
| Mains_Frequency | 50/60Hz |
| Contact_Gap_Minimum | 3mm |
| Terminal_Capacity_1 | 3x2.5mm² |
| Terminal_Capacity_2 | 3x4mm² |
| Terminal_Capacity_3 | 2x6mm² Multi-Strand |
| Earth_Terminal_Capacity_1 | 3x2.5mm² |
| Earth_Terminal_Capacity_2 | 3x4mm² |
| Earth_Terminal_Capacity_3 | 2x6mm² Multi-Strand |
| Product_Class1 | Must be earthed |
| Ambient_Operating_Temperature | -15°C to +40°C |
| Recommended_Location | Internal Use Only |
| Maximum_Installation_Altitude | 2000m |
| Standard_Approval | BS1363 BS EN 62368 |

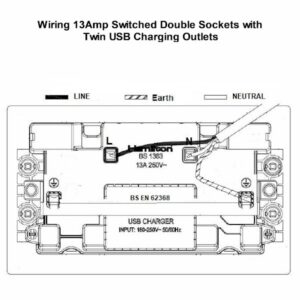

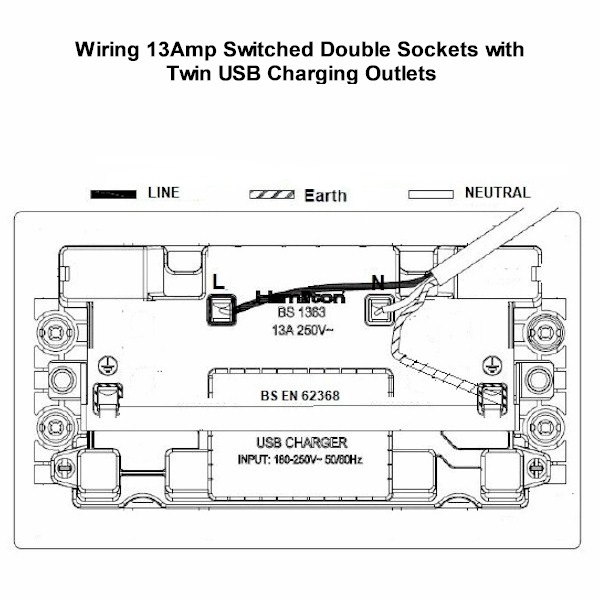

| Wiring_Image | WDSS2USB4-8A.jpg |
| Item_Image | 74CSS2USBCSS-B.jpg |
| Fixing_Hole_Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum_Wall_Box_Depth | 35mm |
| Weight | 300 GR |
| Voltage | 180/250V AC USB TYPE A & C =5V |
| ip_rating | IP2XD |
| Description | Hart CFX SS DP SS2+USB+USB C SS/BL |
| Height | 86.0mm |
| Width | 145.0mm |
| Depth | 5.0mm |
| Plate_Finish | Satin Steel Effect |
| Subheader2 | Hartland CFX Range |
| QR_Instruction | https://online.fliphtml5.com/Hamilton/dcop/#p=1 |
| EAN | 5051164000134 |
| Price | 150.36 |
| Part Code | 74CSS2USBCSS-B |
