Hart CFX Pr/Wht 1g 20AX Inter Rkr WH/WH
£99.56
Description
Hartland CFX Primed White 1 gang 20AX Intermediate Rocker White/White
Delivery and returns information coming soon.
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section_Name | Hartland CFX |
| Page_Sort_Order | 012-001-031 |
| InsertType | 1 gang FL 20AX Intermediate Rocker |
| Insert_Finish | White/White |
| Uf_ItmLabelTechInsert | R312-FL |
| Uf_HAM_Plate_Range | Hartland CFX |
| Uf_HAMPlate_Generic_Size | Single |
| Range_Name | Hartland CFX |
| Patents_And_Trade_Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item_Long_Description | Hartland CFX Primed White 1 gang 20AX Intermediate Rocker White/White |
| PlateFinish | Hartland CFX Primed White |
| EAN_13_Barcode | 5017504015657 |
| Dimensions_Nominal | Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm |
| Current_Rating | 20AX |
| Commodity_Code | 85365080 |

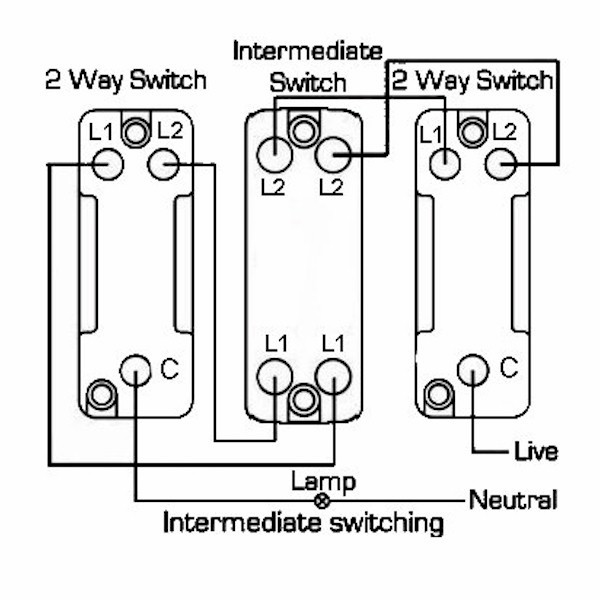

| Wiring_Image | WDINT.jpg |
| Dimension_Image | TD-7CR312.jpg |
| Luckins_TSI | 398333188 |
| Tech_Sheet_Page_Footer | 7WPCR312WH-W - Hartland CFX Primed White 1 gang 20AX Intermediate Rocker White/White |
| product_code | S HT-C PRW |
| family_code | S HART CFX |
| last_inv | 22/03/2024 |
| unit_weight | 0.00000 |
| weight_units | GR |
| Uf_ItmLabelCE | CEPCC.jpg |
| Uf_LuckinsEDP | 4533326422 |
| Uf_HAMInnerBoxQty | 10 |
| Uf_OuterBoxQty | 100 |
| Picture_Exists | No |
| Uf_ITMTechDataType | Plate |
| Uf_IncludeinPriceList | Yes |
| FamilySortOrder | 12 |
| HAM_SortOrder | 1 |
| InsertSortOrder | 031 |
| Generic_Size | Single |
| Box_Fixing_Hole_Centres | 60.3mm |
| Grid_Fixing_Hole_Centres | CFX Clips |
| Uf_HAMPlateFinish | Primed White |
| WEB_InsertType | Intermediate |
| WEB_NumberofGangs | 1 |
| MainInsertColour | White |
| TrimColour | White |
| LastUpdated | 16/02/2026 |
| Module_Size_Depth | 23mm |
| Fixing_Hole_Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum_Wall_Box_Depth | 35mm |
| Plate_Finish | Primed White |
| Subheader2 | Hartland CFX Rocker Switches |
| QR_Instruction | https://online.fliphtml5.com/Hamilton/bfnc/#p=1 |
| Description | Hart CFX Pr/Wht 1g 20AX Inter Rkr WH/WH |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
| Price | 99.56 |
| Part Code | 7WPCR312WH-W |
